36V14A Scooter Replacement Battery

Product information:

Battery model: 36V10A-10S3P

Nominal voltage: 36V

Charging voltage: 42V

Typical capacity: 14Ah

Minimum capacity: 9Ah

Rated power: 600Watt

BMS rated current: the discharge current of different ports is 30A, and the charging current is 5A

BMS function: overcharge, overdischarge, overcurrent, short circuit protection.

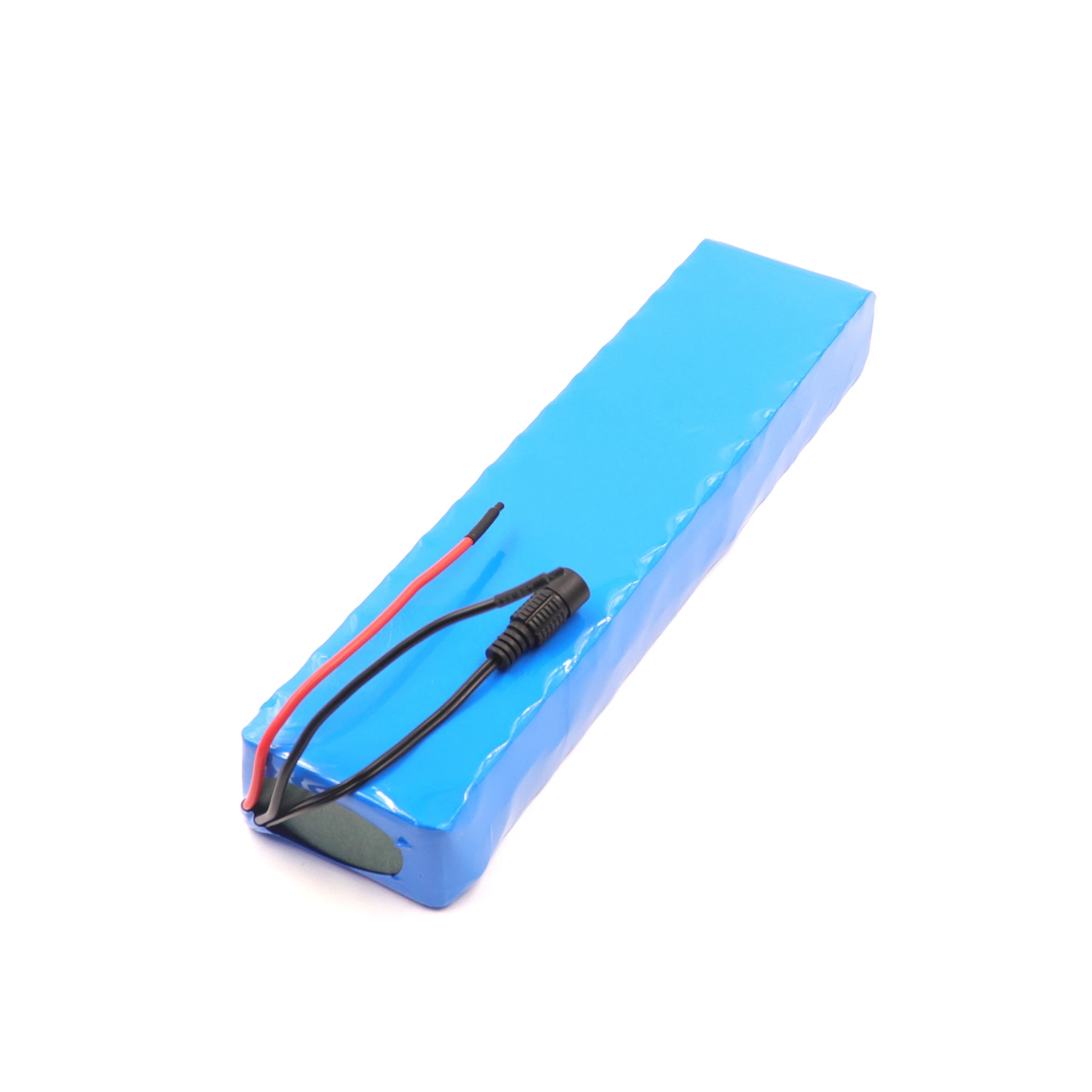

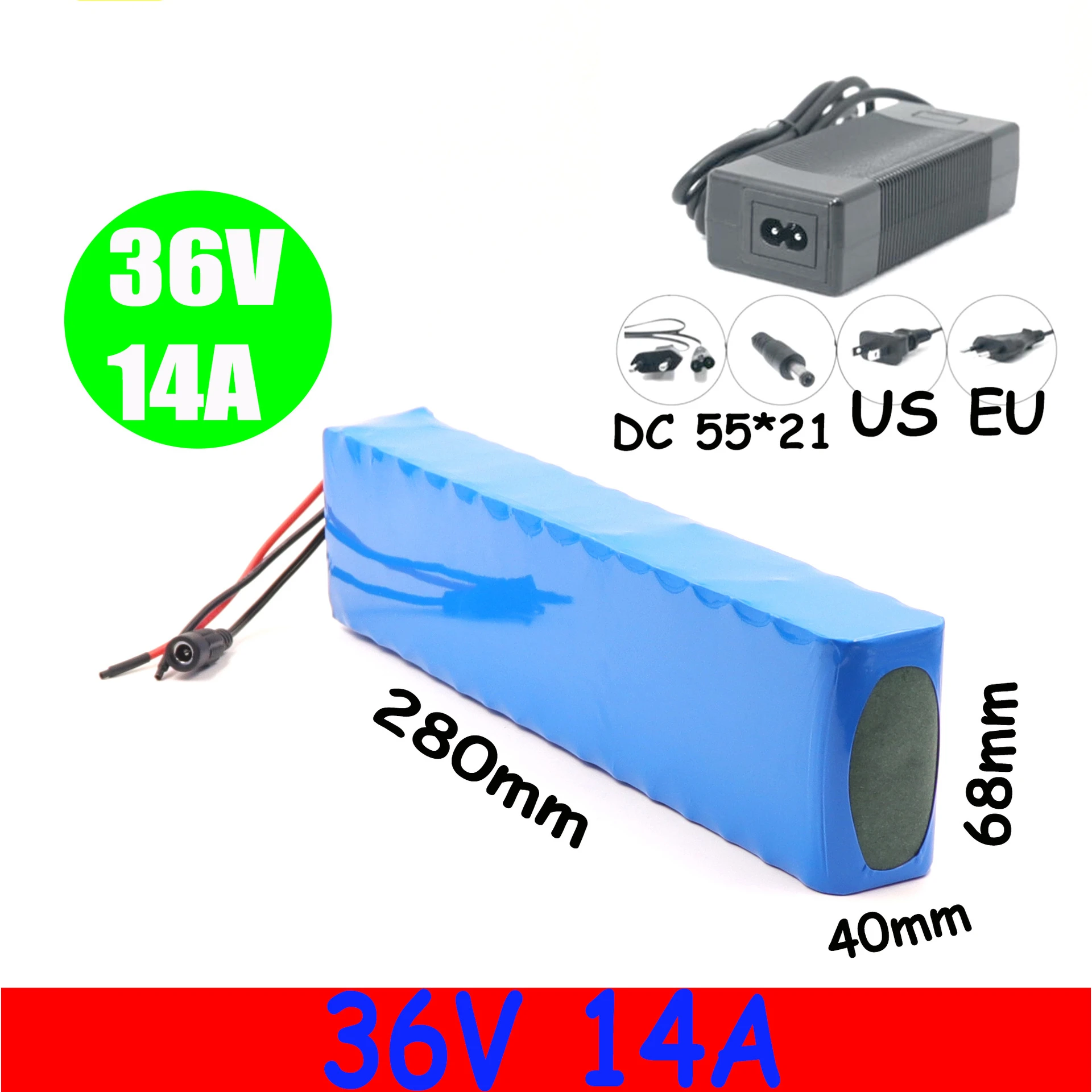

Connectors: Tplug for discharging and DC5521 for charging

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charging method: CC-CV

Maximum charging current: 5A

Charging temperature: 0-45°C

Discharge temperature: -10-60℃

Storage temperature: -20-45°C (3 months)

Cycle life: 80% DOD after 500 cycles

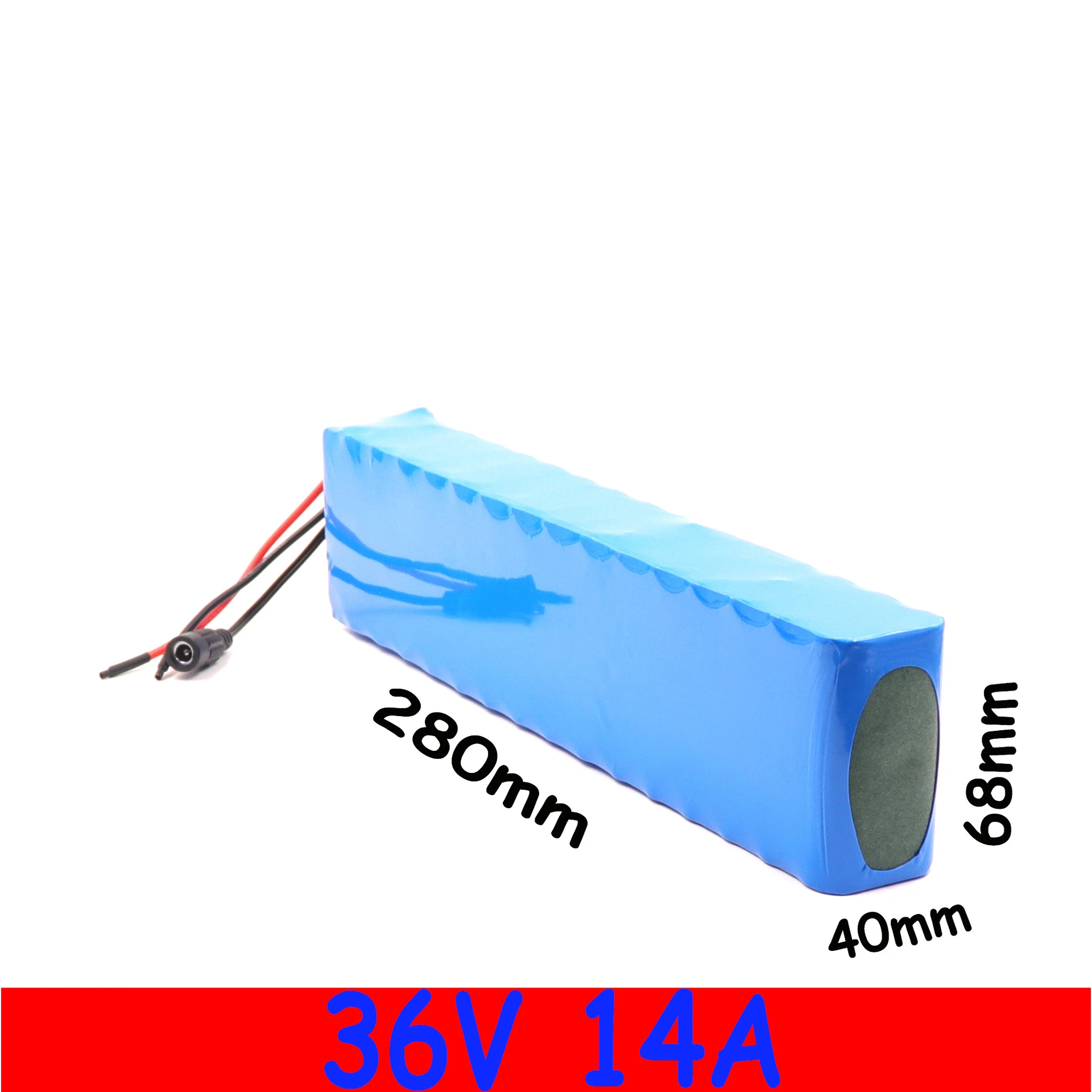

Size: 300*66*38mm (±3mm)

Note:

The battery pack does not have a communication cable. If your electric bike primary battery needs to communicate with the controller, that battery cannot be used to replace the primary battery. It can only be used to extend the battery

Packing list:

Scooter replacement battery*1
