BNC DC Power Video Integrated Cable DVR Wiring

Product information:

Core material: copper-clad aluminum wire

Number of cores: 2 cores+shielding sheath

Color: Black

Length: 5M

Plug specifications: BNC male head+DC5.5 × 2.1 male head TO BNC male head+DC5.5 × 2.1 female head Environmentally friendly PVC material injection molding

Usage: Various security cameras such as gun guns, ball cameras, infrared cameras DVR、 Characteristics of connection cables for network cameras and other devices: The cables have strong anti-interference ability, stable video signal transmission performance, and long service life; High quality connectors, securely and reliably connected. All products undergo strict inspection before leaving the factory, meeting all requirements for reliability testing and various electrical tests.

Outer diameter: 3.3mm

Suitable for cameras with AHD below 2 million. If you have higher specification requirements, please contact customer service for consultation.

This 3.3mm outer diameter BNC+DC extension cable is recommended to use a 12V2A power adapter for 5-30 meters, and a 15V2A power adapter is recommended to increase the voltage for 40-50 meters.

Packing list:

1*extension

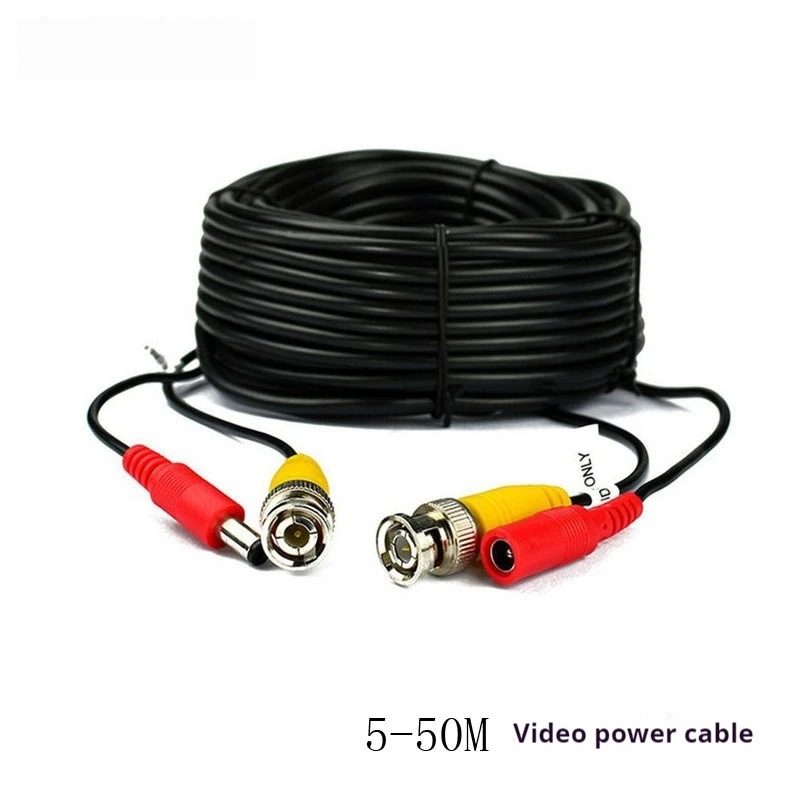

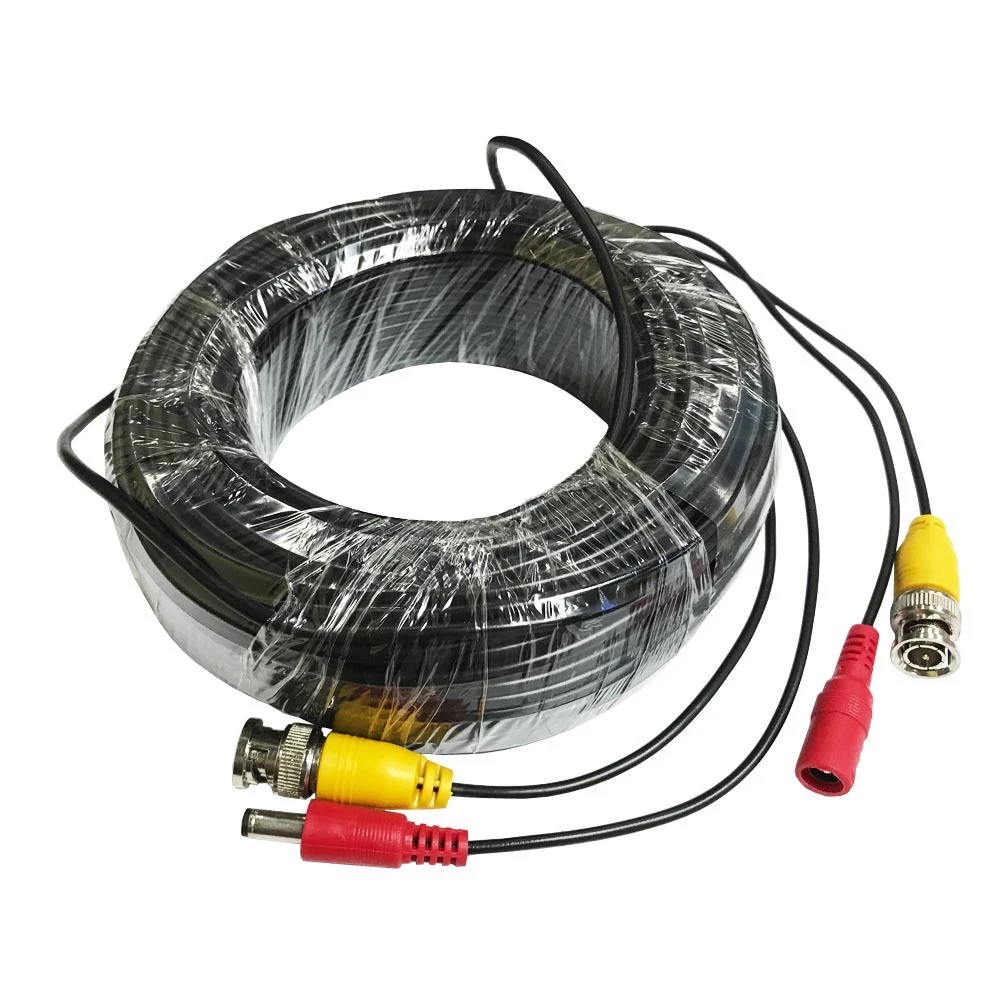

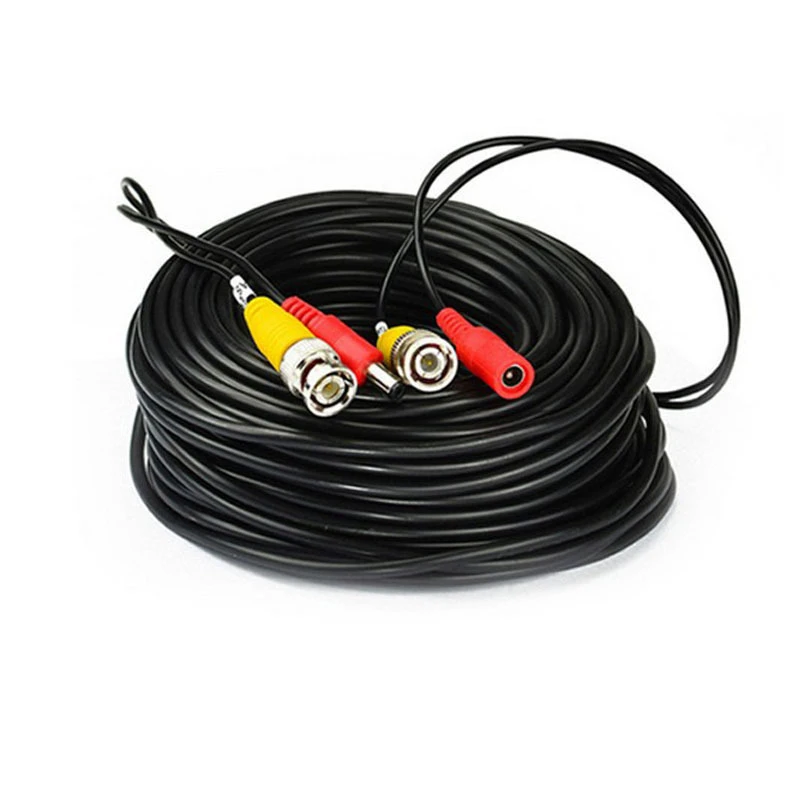

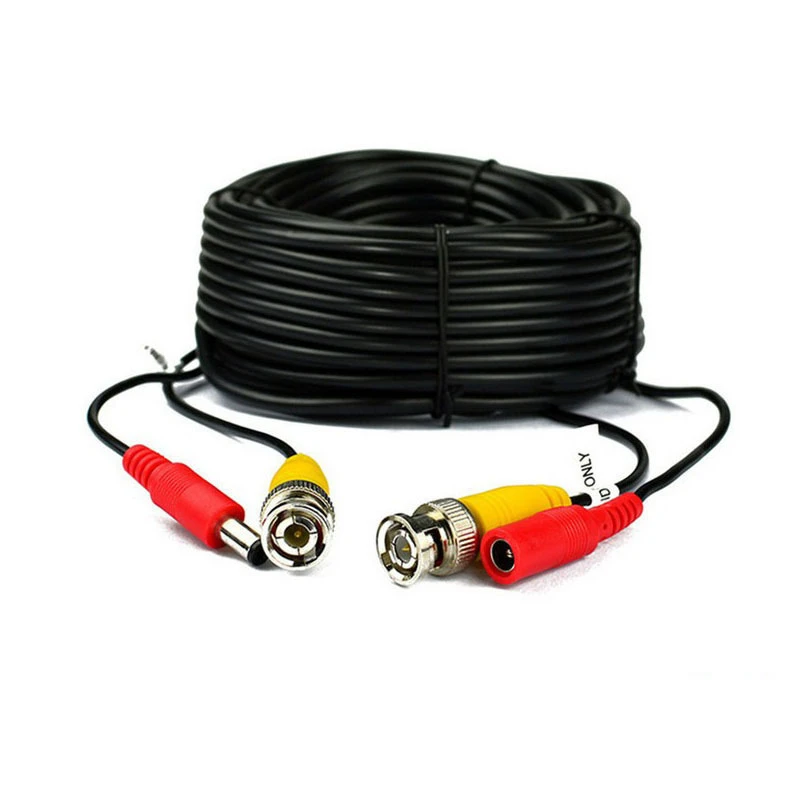

Product Image:
